When I get this operational I will put together a build manual with high rez images. If you want more details or better images just ask. In this build process I am making changes to help in quicker builds. I am building separate components for spares and for mods. I am approaching this build as individual modules that can be removed and replaced quickly
These pictures are from the original builder and their process:
https://www.sciencedirect.com/science/article/pii/S2468067220300390
https://www.fabbaloo.com/blog/2020/9/28/open-source-high-temperature-reprap-3d-printer-announced
Today I start identifying the parts and start looking for materials. No China Build is the strategy
hardware $222.73 USD
| Cart Items | SKU | Qty |
| ZYLtech SBR16 Linear Rail Set + Bearing Blocks - Pre-cut lengths 300mm-2000mm | KT-RR-LIN-300 | 1 |
| 12x 90° 20mm Aluminum Brace/Angle Bracket for 2020 Extrusion | HW-2020ANGBR-ALU-90DEG-SM-12x | 7 |
| 100x ZYLtech Hammer Nuts (T-Slot) for 2020 Aluminum Extrusion - M4 or M5 | HW-M4-HAMMER-100PK | 3 |
| Zyltech MGN12 H-TYPE - Linear Rail with Single or Double Carriage Block | HW-MGN12-300-oneblock | 2 |
| Zyltech MGN12 H-TYPE - Linear Rail with Single or Double Carriage Block | HW-MGN12-300-twoblock | 2 |
| T-slot L type 90 degree 2020 Inside bracket 12 Pack | HW-INBRKT90-2020-12x | 1 |
| 100x M4x8 Button Hex Screws High Strength Class 10.9 BLACK | HW-M4X8-BLK-100PK | 3 |
Printing problems today
The printer head clogged. the machine ran for a few minutes , I heard the feeder popping, when the filiment stops moving it makes a noise, if the print head is to close to the base plate it does it also.
I removed the head but plastic had melted and backed up inside the head, needed to use a drill bit to clean it out.
testing now, replaced the head , leveled the bed, hope for the best
This is the first print. Pretty sharp .
#Tip. I am using cura and there is a cura plug-in for adjusting the z height, you can do this when you slice the item

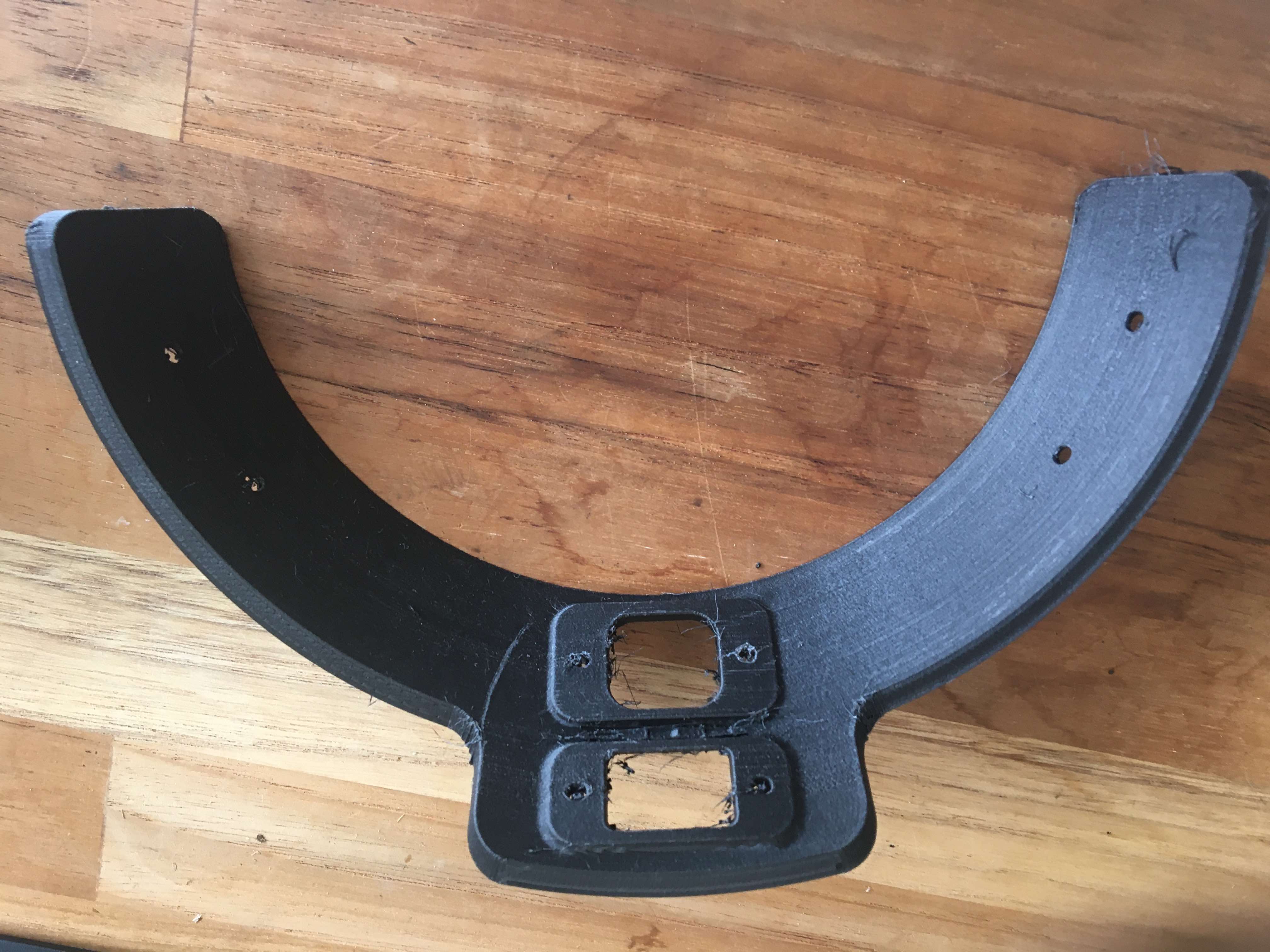

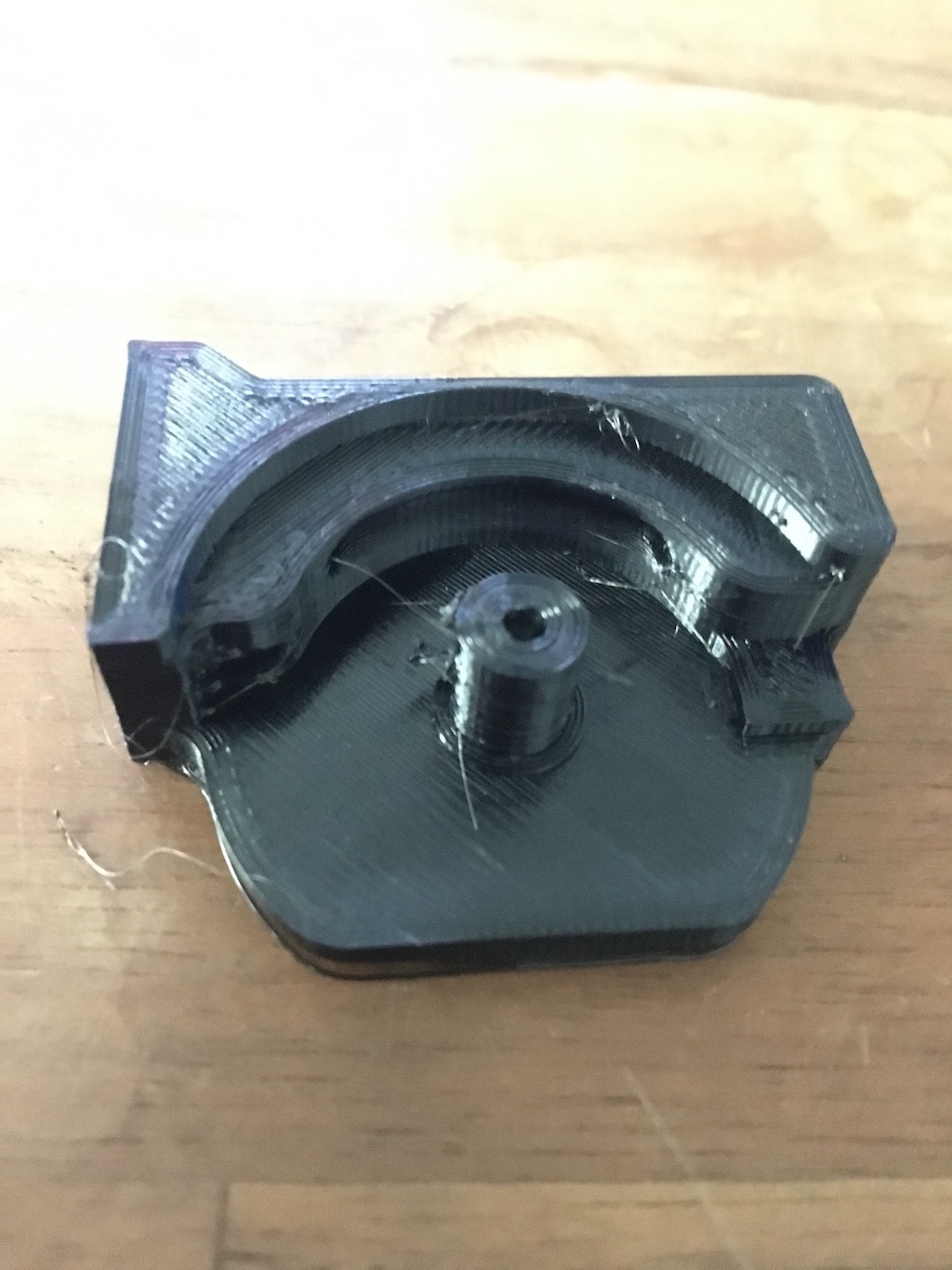

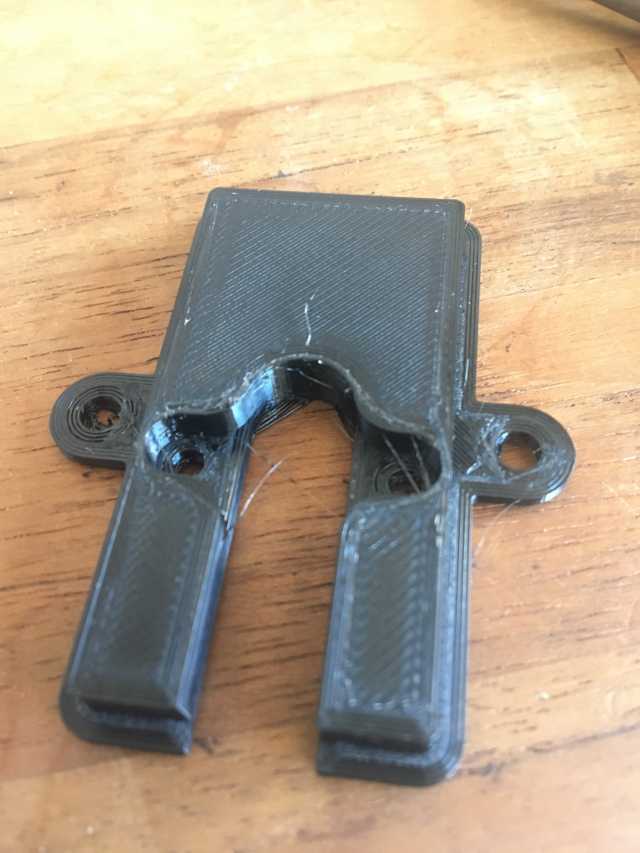

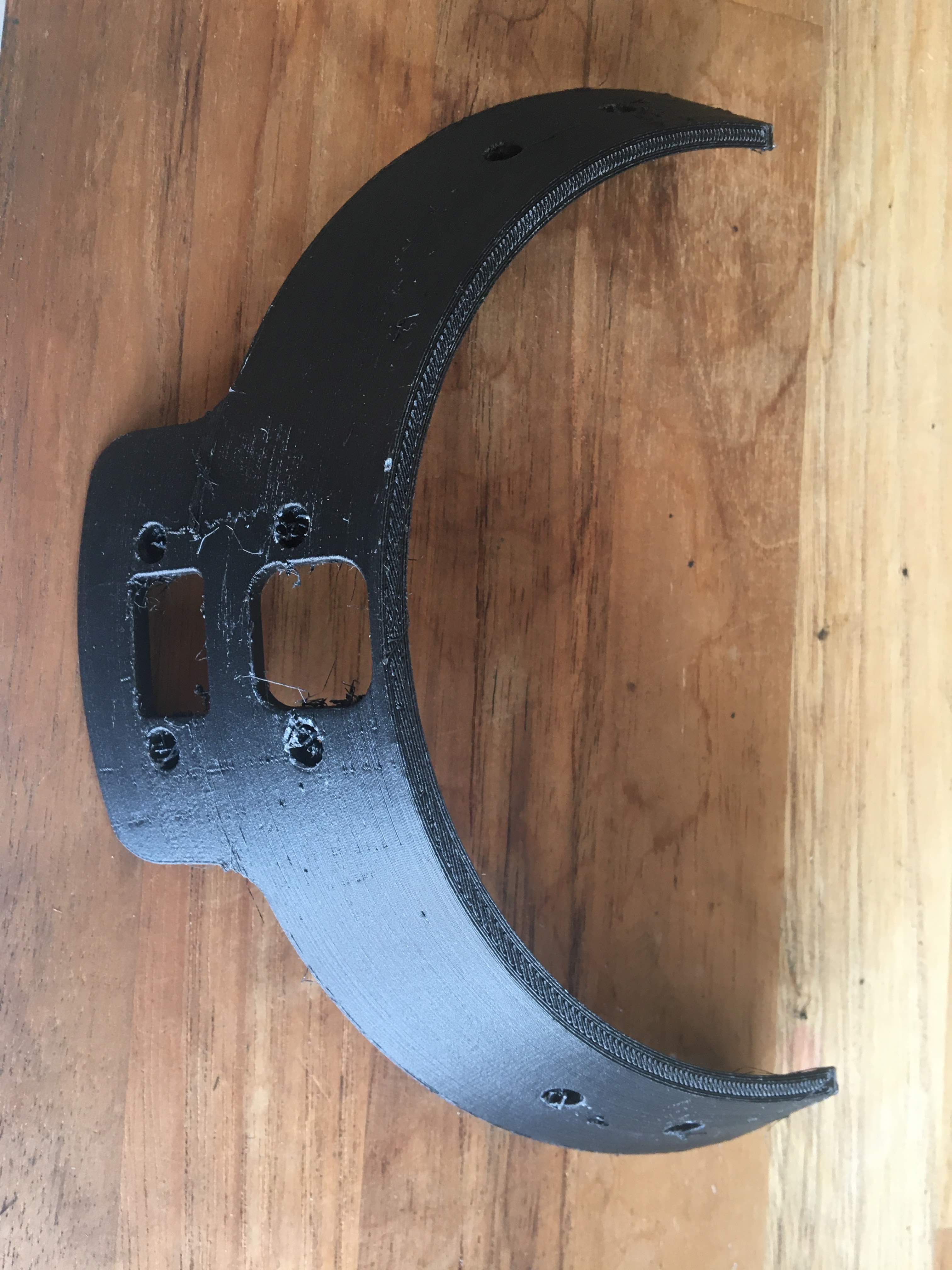

First Prints from longer lk1

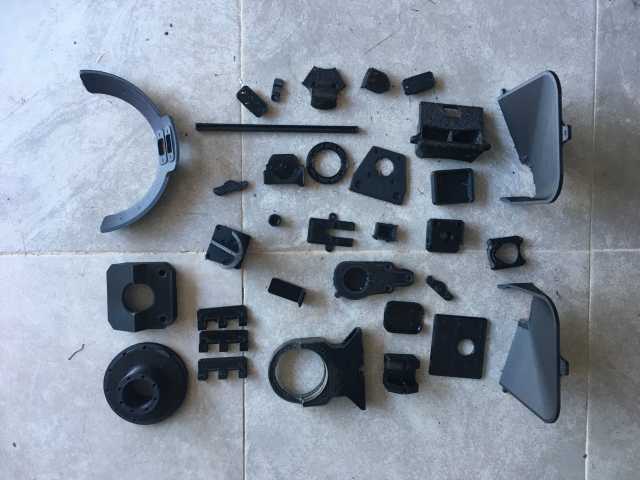

Parts printed so far
